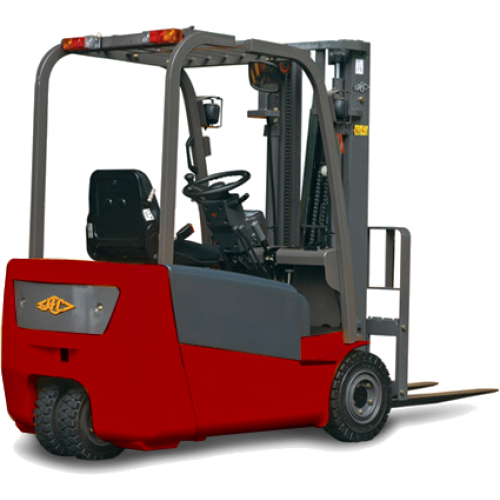

Hangcha CPCDS18J-C1 electric forklift is characterized by convenience, reliability, and ergonomic use. In addition, it meets all international regulatory requirements and has the appropriate certificates.
Hangcha CPCDS18J-C1 has the following technical characteristics:
Hangcha CPCDS18J-C1 electric forklift is characterized by convenience, reliability, and ergonomic use. In addition, it meets all international regulatory requirements and has the appropriate certificates.
Hangcha CPCDS18J-C1 has the following technical characteristics:
This forklift is ideal for use in factories and other production facilities, warehouse areas, agriculture, etc.
This model CPCDS18J-C1 is equipped with an economical and reliable engine. All parts undergo quality control at every stage of production.
Our specialists are ready to offer you a full range of services for selecting Hangcha forklifts. Requests are processed daily. We are always ready to help you in your business.
Price upon request
| Manufacturer | Hangcha (HC) | ||
| Model | CPCDS18J-C1 | ||
| Rated Load Capacity | kg | 1800 | |
| Load Center | mm | 500 | |
| Lift Height | mm | 3000 | |
| Free Lift | mm | 150 | |
| Fork Size | thickness/width/length | mm | 40×100×900 |
| Mast Tilt Angle | forward/reverse | mm | 6.5/6.5 |
| Overall Dimensions | length to fork face | mm | 2012 |
| width | mm | 1060 | |
| lowered mast height | mm | 2055 | |
| extended mast height | mm | 4005 | |
| overhead guard height | mm | 1960 | |
| Seat Height | mm | 930 | |
| Turning Radius | min | mm | 1658 |
| Overhang | mm | 355 | |
| Track Width (front/rear) | mm | 915/175 | |
| Ground Clearance | min | mm | 90 |
| Wheelbase | mm | 1465 | |
| Fork Spread | min./max. | mm | 200/1000 |
| Working Aisle Width with Pallet | 1000×1200 crosswise | mm | 3380 |
| 800×1200 lengthwise | mm | 3480 | |
| Speed | travel loaded | km/h | 12(13) |
| travel unloaded | km/h | 12(13) | |
| lifting loaded | mm/s | 250 | |
| lifting unloaded | mm/s | 400 | |
| Gradeability | loaded | % | 12(15) |
| unloaded | % | 13(18) | |
| Service Weight | including battery | kg | 3370 |
| Wheels | front x2 | 200/50-10 | |
| rear x2 | 15×4.5-8 | ||
| Engine | drive motor x2 | kW | 4.6x2 |
| hydraulic pump motor | kW | 8.6DC | |
| 33 | Battery | standard | 48/500 |
| optional | V/Ah | 48/600 | |
| Controller | drive system | AC | |
| manufacturer | CURTIS | ||
| Working Pressure for Attachments | MPa | 14.5 | |
