Production Line Layout & Equipment Selection

Efficient production starts with the right layout. We translate process flow requirements into a physical arrangement of equipment within the available floor space — optimising material flow, operator access, maintenance clearances, and utility routing. Equipment selection at this stage determines both capital cost and long-term operating efficiency.

What is included

• Analysis of available floor space, column grid, and ceiling height
• Production line flow optimisation — minimising handling and transport distances
• Equipment footprint and clearance calculations

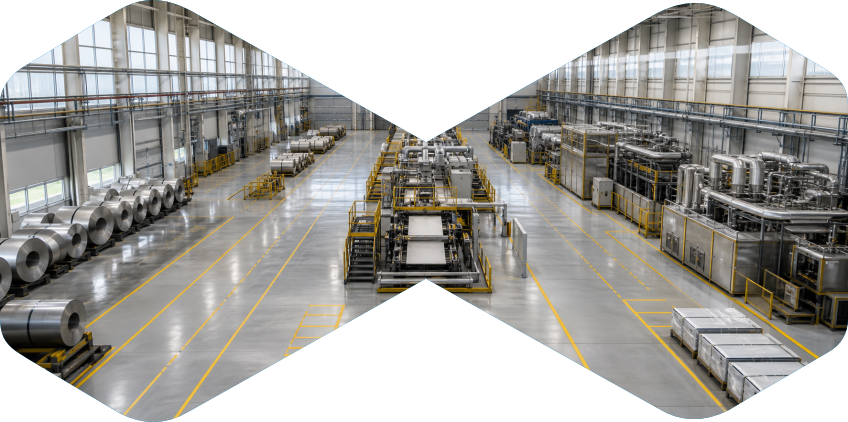

• Specific equipment selection from verified manufacturers
• Comparison of equipment options by performance, cost, and availability
• Layout drawing showing equipment positions and utility connection points

How the project proceeds

1. Review site dimensions and structural parameters
2. Develop candidate layout options and evaluate flow efficiency
3. Select specific equipment and confirm dimensions with manufacturers
4. Finalise the layout drawing and equipment list for client approval

Why Infinity

We select equipment we can actually procure — working with established supply channels in China, South Korea, and India — so the layout reflects real machines with confirmed specifications, not assumed dimensions.
