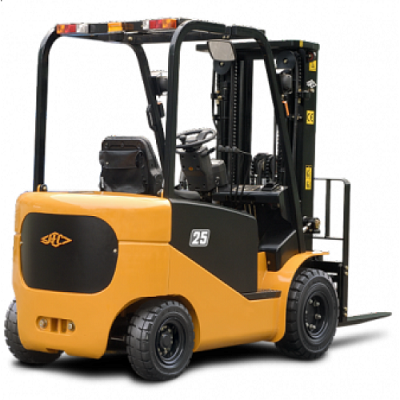

Hangcha CPD15J electric forklift is characterized by convenience, reliability, and ergonomic use. In addition, it meets all international regulatory requirements and has the appropriate certificates.
Hangcha CPD15J has the following technical characteristics:
Hangcha CPD15J electric forklift is characterized by convenience, reliability, and ergonomic use. In addition, it meets all international regulatory requirements and has the appropriate certificates.
Hangcha CPD15J has the following technical characteristics:
This forklift is ideal for use in factories and other production facilities, warehouse areas, agriculture, etc.
This model CPD15J is equipped with an economical and reliable engine. All parts undergo quality control at every stage of production.
Our specialists are ready to offer you a full range of services for selecting Hangcha forklifts. Requests are processed daily. We are always ready to help you in your business.
Price upon request
| Model | Hangcha (HC) CPD15J | ||||
| Rated Load Capacity | kg | 1500 | |||
| Load Center | mm | 500 | |||
| Lift Height | mm | 3000 | |||
| Free Lift | mm | 135 | |||
| Fork Size | L x W x T | mm | 35x120x900 | ||
| Mast Tilt Range | Forward/Reverse | deg. | 5/10 | ||
| Overall Dimensions | Length to Fork Face | mm | 2080 | ||
| Overall Width | mm | 1060 | |||
| Lowered Mast Height | mm | 1995 | |||
| Extended Mast Height | mm | 3935 | |||
| Overhead Guard Height | mm | 2075 | |||
| Operator Seat Height | mm | 1030 | |||
| Turning Radius | minimum | mm | 1780 | ||
| Overhang | mm | 406 | |||
| Track Width (front/rear) | mm | 888/897.5 | |||
| Ground Clearance | minimum | mm | 110 | ||
| Wheelbase | mm | 1380 | |||
| Fork Spread | minimum/maximum | mm | 240/1000 | ||
| Working Aisle Width with Pallet | 1000x1200 crosswise | mm | 3556 | ||
| 800x1200 lengthwise | mm | 3655 | |||
| Speed | Travel Loaded | km/h | 12 | ||
| Travel Unloaded | km/h | 13 | |||
| Lifting Loaded | mm/h | 290 | |||
| Lifting Unloaded | mm/h | 440 | |||
| Lowering Loaded | mm/h | 460 | |||
| Lowering Unloaded | mm/h | 430 | |||
| Gradeability | Loaded | % | 13 | ||
| Unloaded | % | 14 | |||
| Max. Drawbar Pull (loaded, S2 5 min) | H | 10000 | |||
| Service Weight | including battery | kg | 2940 | ||
| Axle Load (Front/Rear) | loaded | kg | 3900/540 | ||
| unloaded | kg | 1353/1587 | |||
| Wheels | Front | 6.00-9 | |||
| Rear | 5.00-8 | ||||
| Engine | Drive | kW | 5.4 | ||
| Hydraulic Pump | kW | 8.2 | |||
| Battery | Standard | V/Ah | 48/420 | ||
| Optional | V/Ah | 48/550 | |||
| Controller | Type | DC | |||
| Manufacturer | CURTIS | ||||
| Working Pressure | For Attachments | MPa | 14.5 | ||
