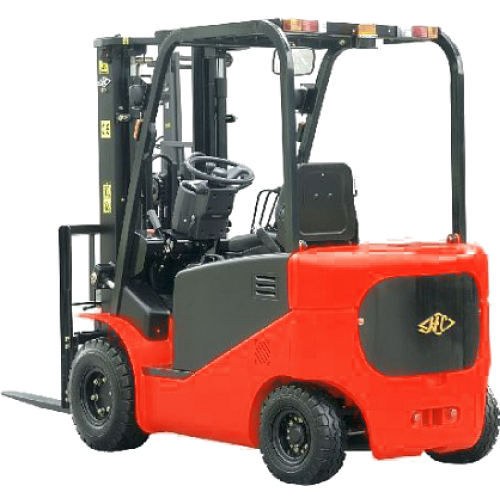

Hangcha CPD25J-C1 electric forklift is characterized by convenience, reliability, and ergonomic use. In addition, it meets all international regulatory requirements and has the appropriate certificates.
Hangcha CPD25J-C1 has the following technical characteristics:
Hangcha CPD25J-C1 electric forklift is characterized by convenience, reliability, and ergonomic use. In addition, it meets all international regulatory requirements and has the appropriate certificates.
Hangcha CPD25J-C1 has the following technical characteristics:
This forklift is ideal for use in factories and other production facilities, warehouse areas, agriculture, etc.
This model CPD25J-C1 is equipped with an economical and reliable engine. All parts undergo quality control at every stage of production.
Our specialists are ready to offer you a full range of services for selecting Hangcha forklifts. Requests are processed daily. We are always ready to help you in your business.
Price upon request
| Made in | Hangcha (HC) | ||||
| Model | CPD25J-C1 | ||||
| Rated Load Capacity | kg | 2500 | |||
| Load Center | mm | 500 | |||
| Lift Height | mm | 3000 | |||
| Free Lift | mm | 140 | |||
| Fork Size | L x W x T | mm | 40×130×1070 | ||
| Mast Tilt Range | Forward/Reverse | deg. | 5/10 | ||
| Overall Dimensions | Length to Fork Face | mm | 2325 | ||
| Overall Width | mm | 1265 | |||
| Lowered Mast Height | mm | 2070 | |||
| Extended Mast Height | mm | 4040 | |||
| Overhead Guard Height | mm | 2090 | |||
| Operator Seat Height | mm | 1070 | |||
| Turning Radius | minimum | mm | 2090 | ||
| Overhang | mm | 455 | |||
| Track Width (front/rear) | mm | 1058/960 | |||
| Ground Clearance | minimum | mm | 120 | ||
| Wheelbase | mm | 1485 | |||
| Fork Spread | minimum/maximum | mm | 200/1038 | ||
| Working Aisle Width with Pallet | 1000x1200 crosswise | mm | 3911 | ||
| 800x1200 lengthwise | mm | 4010 | |||
| Speed | Travel Loaded | km/h | 14 | ||
| Travel Unloaded | km/h | 14 | |||
| Lifting Loaded | mm/h | 280 | |||
| Lifting Unloaded | mm/h | 440 | |||
| Lowering Loaded | mm/h | 420 | |||
| Lowering Unloaded | mm/h | 430 | |||
| Gradeability | Loaded | % | 13 | ||
| Unloaded | % | 14 | |||
| Max. Drawbar Pull (loaded, S2 5 min) | H | 18000 | |||
| Service Weight | including battery | kg | 4180 | ||
| Axle Load (Front/Rear) | loaded | kg | 5990/690 | ||
| unloaded | kg | 1890/2290 | |||
| Wheels | Front | 23×9-10 | |||
| Rear | 18×7-8 | ||||
| Engine | Drive | kW | 9.1 | ||
| Hydraulic Pump | kW | 8.6 | |||
| Battery | Standard | V/Ah | 48/630 | ||
| Optional | V/Ah | 48/700 | |||
| Controller | Type | AC | |||
| Manufacturer | CURTIS | ||||
| Working Pressure | For Attachments | MPa | 17.5 | ||
