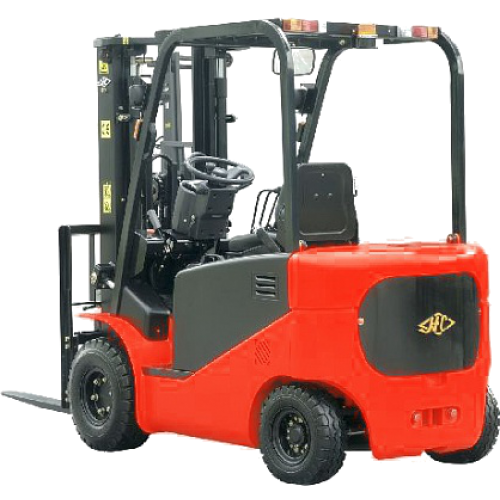

Hangcha CPD30J-C2 electric forklift is characterized by convenience, reliability, and ergonomic use. In addition, it meets all international regulatory requirements and has the appropriate certificates.
Hangcha CPD30J-C2 has the following technical characteristics:
Hangcha CPD30J-C2 electric forklift is characterized by convenience, reliability, and ergonomic use. In addition, it meets all international regulatory requirements and has the appropriate certificates.
Hangcha CPD30J-C2 has the following technical characteristics:
This forklift is ideal for use in factories and other production facilities, warehouse areas, agriculture, etc.
This model CPD30J-C2 is equipped with an economical and reliable engine. All parts undergo quality control at every stage of production.
Our specialists are ready to offer you a full range of services for selecting Hangcha forklifts. Requests are processed daily. We are always ready to help you in your business.
Price upon request
| Made in | Hangcha (HC) | ||
| Model | CPD30J-C2 | ||
| Rated Load Capacity | kg | 3000 | |
| Load Center | mm | 500 | |
| Lift Height | mm | 3000 | |
| Free Lift | mm | 145 | |
| Fork Size | L x W x T | mm | 45×130×1070 |
| Mast Tilt Range | Forward/Reverse | deg. | 5/10 |
| Overall Dimensions | Length to Fork Face | mm | 2490 |
| Overall Width | mm | 1265 | |
| Lowered Mast Height | mm | 2100 | |
| Extended Mast Height | mm | 4135 | |
| Overhead Guard Height | mm | 2090 | |
| Operator Seat Height | mm | 1070 | |
| Turning Radius | minimum | mm | 2230 |
| Overhang | mm | 475 | |
| Track Width (front/rear) | mm | 1058/960 | |
| Ground Clearance | minimum | mm | 125 |
| Wheelbase | mm | 1625 | |
| Fork Spread | minimum/maximum | mm | 290/1200 |
| Working Aisle Width with Pallet | 1000x1200 crosswise | mm | 4071 |
| 800x1200 lengthwise | mm | 4170 | |
| Speed | Travel Loaded | km/h | 14 |
| Travel Unloaded | km/h | 14.5 | |
| Lifting Loaded | mm/h | 260 | |
| Lifting Unloaded | mm/h | 410 | |
| Lowering Loaded | mm/h | 460 | |
| Lowering Unloaded | mm/h | 424 | |
| Gradeability | Loaded | % | 13 |
| Unloaded | % | 14 | |
| Max. Drawbar Pull (loaded, S2 5 min) | H | 22000 | |
| Service Weight | including battery | kg | 5050 |
| Axle Load (Front/Rear) | loaded | kg | 7160/890 |
| unloaded | kg | 2424/2626 | |
| Wheels | Front | 23×9-10 | |
| Rear | 18×7-8 | ||
| Engine | Drive | kW | 11.75 |
| Hydraulic Pump | kW | 11 | |
| Battery | Standard | V/Ah | 80/500 |
| Optional | V/Ah | ||
| Controller | Type | AC | |
| Manufacturer | CURTIS | ||
| Working Pressure | For Attachments | MPa | 17.5 |
