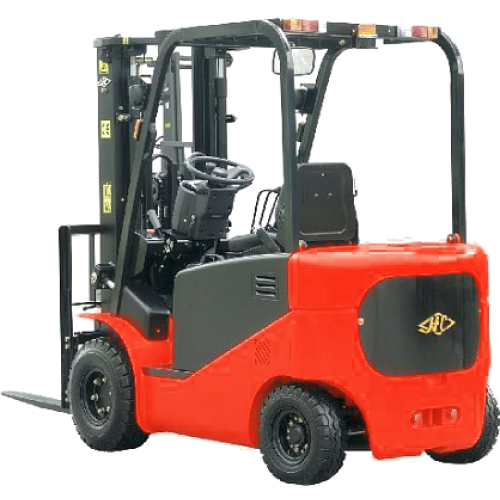

Hangcha CPD35J-C2 electric forklift is characterized by convenience, reliability, and ergonomic use. In addition, it meets all international regulatory requirements and has the appropriate certificates.
Hangcha CPD35J-C2 has the following technical characteristics:
Hangcha CPD35J-C2 electric forklift is characterized by convenience, reliability, and ergonomic use. In addition, it meets all international regulatory requirements and has the appropriate certificates.
Hangcha CPD35J-C2 has the following technical characteristics:
This forklift is ideal for use in factories and other production facilities, warehouse areas, agriculture, etc.
This model CPD35J-C2 is equipped with an economical and reliable engine. All parts undergo quality control at every stage of production.
Our specialists are ready to offer you a full range of services for selecting Hangcha forklifts. Requests are processed daily. We are always ready to help you in your business.
Price upon request
| Made in | Hangcha (HC) | ||
| Model | CPD35J-C2 | ||
| Rated Load Capacity | kg | 3500 | |
| Load Center | mm | 500 | |
| Lift Height | mm | 3000 | |
| Free Lift | mm | 145 | |
| Fork Size | L x W x T | mm | 45×135×1070 |
| Mast Tilt Range | Forward/Reverse | deg. | 5 10 |
| Overall Dimensions | Length to Fork Face | mm | 2570 |
| Overall Width | mm | 1302 | |
| Lowered Mast Height | mm | 2186 | |
| Extended Mast Height | mm | 4221 | |
| Overhead Guard Height | mm | 2090 | |
| Operator Seat Height | mm | 1070 | |
| Turning Radius | minimum | mm | 2310 |
| Overhang | mm | 475 | |
| Track Width (front/rear) | mm | 1068/960 | |
| Ground Clearance | minimum | mm | 125 |
| Wheelbase | mm | 1625 | |
| Fork Spread | minimum/maximum | mm | 290/1200 |
| Working Aisle Width with Pallet | 1000x1200 crosswise | mm | 4161 |
| 800x1200 lengthwise | mm | 4260 | |
| Speed | Travel Loaded | km/h | 12 |
| Travel Unloaded | km/h | 13 | |
| Lifting Loaded | mm/h | 210 | |
| Lifting Unloaded | mm/h | 370 | |
| Lowering Loaded | mm/h | 450 | |
| Lowering Unloaded | mm/h | 404 | |
| Gradeability | Loaded | % | 11 |
| Unloaded | % | 12 | |
| Max. Drawbar Pull (loaded, S2 5 min) | H | 20000 | |
| Service Weight | including battery | kg | 5450 |
| Axle Load (Front/Rear) | loaded | kg | 7876/1074 |
| unloaded | kg | 2998/2452 | |
| Wheels | Front | 23×10-12 | |
| Rear | 200/50-10 | ||
| Engine | Drive | kW | 11.75 |
| Hydraulic Pump | kW | 10 | |
| Battery | Standard | V/Ah | 80/500 |
| Optional | V/Ah | ||
| Controller | Type | AC | |
| Manufacturer | CURTIS | ||
| Working Pressure | For Attachments | MPa | 18 |
