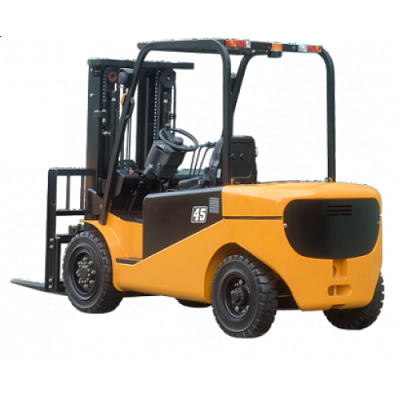

Hangcha CPD45J-D1 electric forklift is characterized by convenience, reliability, and ergonomic use. In addition, it meets all international regulatory requirements and has the appropriate certificates.
Hangcha CPD45J-D1 has the following technical characteristics:
Hangcha CPD45J-D1 electric forklift is characterized by convenience, reliability, and ergonomic use. In addition, it meets all international regulatory requirements and has the appropriate certificates.
Hangcha CPD45J-D1 has the following technical characteristics:
This forklift is ideal for use in factories and other production facilities, warehouse areas, agriculture, etc.
This model CPD45J-D1 is equipped with an economical and reliable engine. All parts undergo quality control at every stage of production.
Our specialists are ready to offer you a full range of services for selecting Hangcha forklifts. Requests are processed daily. We are always ready to help you in your business.
Price upon request
| Made in | Hangcha (HC) | ||
| Model | CPD45J-C2 | ||
| Rated Load Capacity | kg | 4500 | |
| Load Center | mm | 500 | |
| Lift Height | mm | 3000 | |
| Free Lift | mm | 150 | |
| Fork Size | L x W x T | mm | 55×150×1070 |
| Mast Tilt Range | Forward/Reverse | deg. | 6/12 |
| Overall Dimensions | Length to Fork Face | mm | 3015 |
| Overall Width | mm | 1380 | |
| Lowered Mast Height | mm | 2185 | |
| Extended Mast Height | mm | 4117 | |
| Overhead Guard Height | mm | 2280 | |
| Operator Seat Height | mm | 1185 | |
| Turning Radius | minimum | mm | 2650 |
| Overhang | mm | 550 | |
| Track Width (front/rear) | mm | 1130/1100 | |
| Ground Clearance | minimum | mm | 219 |
| Wheelbase | mm | 2000 | |
| Fork Spread | minimum/maximum | mm | 310/1200 |
| Working Aisle Width with Pallet | 1000x1200 crosswise | mm | 4516 |
| 800x1200 lengthwise | mm | 4615 | |
| Speed | Travel Loaded | km/h | 13.5 |
| Travel Unloaded | km/h | 13.5 | |
| Lifting Loaded | mm/h | 260 | |
| Lifting Unloaded | mm/h | 420 | |
| Lowering Loaded | mm/h | ||
| Lowering Unloaded | mm/h | ||
| Gradeability | Loaded | % | 14 |
| Unloaded | % | 15 | |
| Max. Drawbar Pull (loaded, S2 5 min) | H | 26000 | |
| Service Weight | including battery | kg | 6800 |
| Axle Load (Front/Rear) | loaded | kg | 9950/1350 |
| unloaded | kg | 3950/2850 | |
| Wheels | Front | 250/15 | |
| Rear | 7.00-12 | ||
| Engine | Drive | kW | 16.6 |
| Hydraulic Pump | kW | 25.4 | |
| Battery | Standard | V/Ah | 80/700 |
| Optional | V/Ah | ||
| Controller | Type | AC | |
| Manufacturer | CURTIS | ||
| Working Pressure | For Attachments | MPa | 17.5 |
