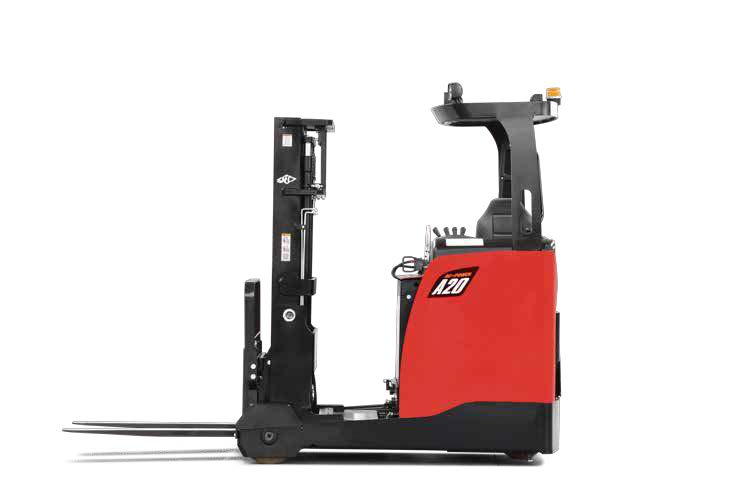

Hangcha CQD20-AC4 reach truck is characterized by convenience, reliability, and ergonomic use. It also meets all international regulatory requirements and has the relevant certificates.
Hangcha CQD20-AC4 has the following technical specifications:
Hangcha CQD20-AC4 reach truck is characterized by convenience, reliability, and ergonomic use. It also meets all international regulatory requirements and has the relevant certificates.
Hangcha CQD20-AC4 has the following technical specifications:
This reach truck is ideal for use in factories and other manufacturing facilities, warehouses, agriculture, and more.
This model CQD20-AC4 is equipped with an economical and reliable engine. All parts undergo quality control at every stage of production.
Our specialists are ready to offer you a full range of services for selecting Hangcha reach trucks. Requests are processed daily. We are always ready to help you in your business.
Price on request
| Characteristics | ||
| Brand | Hangcha | |
| Model Name | CQD20-AC4 | |
| Rated/Residual Load Capacity | 2000 | |
| Center of Gravity | 600 | |
| Weight | ||
| Service Weight, Incl. Battery | 3320 | |
| Dimensions | ||
| Fork Lift Height | 3000 | |
| Overall Length | 2005 | |
| Overall Width | 1286 | |
| Ground Clearance at Wheelbase Center | ||
| Stacker Aisle Width, Loaded with 1000x1200mm Pallets | 2935 | |
| Stacker Aisle Width, Loaded with 800x1200mm Pallets | 3000 | |
| Outer Turning Radius | 1804 | |
| Engine | ||
| Travel Motor Power S2 60 min | AC 6.5 | |
| Lift Motor Power S3 15% | AC 14.5 | |
| Battery Voltage, Rated Capacity K5 | 48/500 | |
| Drive Motor | Full AC | |
| Control System Manufacturer | Curtis | |
