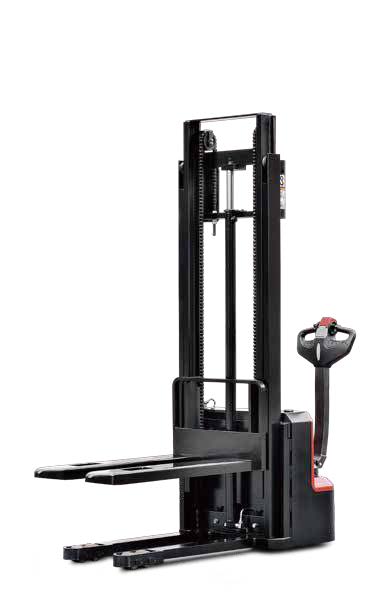

Electric fork stacker Hangcha CDD10-AMC1-B/SZ is characterized by convenience, reliability, and ergonomic use. It also meets all international regulatory requirements and has the relevant certificates.
Hangcha forklift CDD10-AMC1-B/SZ has the following technical specifications:
Electric fork stacker Hangcha CDD10-AMC1-B/SZ is characterized by convenience, reliability, and ergonomic use. It also meets all international regulatory requirements and has the relevant certificates.
Hangcha forklift CDD10-AMC1-B/SZ has the following technical specifications:
This electric stacker is ideal for use in factories and other manufacturing facilities, warehouses, agriculture, and more.
This model is equipped with an economical and reliable engine. All parts undergo quality control at every stage of production.
Our specialists are ready to offer you a full range of services for selecting Hangcha electric forklift stackers. Requests are processed daily. We are always ready to help you in your business.
Price on request
| Characteristics | ||
| Brand | Hangcha | |
| Model Name | CDD10-AMC1-B/SZ | |
| Control Type | Pedestrian | |
| Rated/Residual Load Capacity | 1000 | |
| Center of Gravity | 600 | |
| Weight | ||
| Service Weight, Incl. Battery | 744 | |
| Dimensions | ||
| Fork Lift Height | 3000 | |
| Overall Length | 1836 | |
| Overall Width | 1100 | |
| Ground Clearance at Wheelbase Center | 35 | |
| Stacker Aisle Width, Loaded with 1000x1200mm Pallets | 1901 | |
| Stacker Aisle Width, Loaded with 800x1200mm Pallets | 1466 | |
| Outer Turning Radius | 1466 | |
| Engine | ||
| Travel Motor Power S2 60 min | 0.7/0.94 | |
| Lift Motor Power S3 15% | 2.2/2.95 | |
| Battery Voltage, Rated Capacity K5 | 02.12.20 | |
| Drive Motor | DC | |
