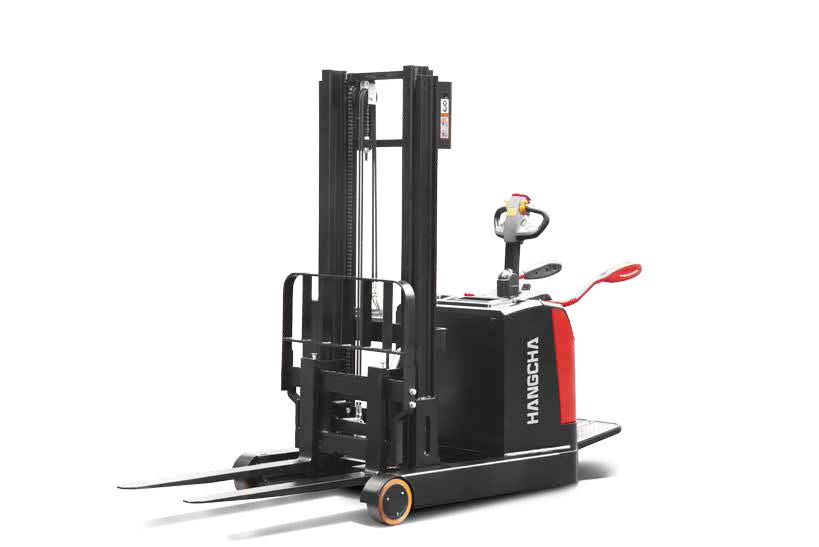

Electric fork stacker Hangcha CDD12-AZ3S-M is characterized by convenience, reliability, and ergonomic use. It also meets all international regulatory requirements and has the relevant certificates.
Hangcha forklift CDD12-AZ3S-M has the following technical specifications:
Electric fork stacker Hangcha CDD12-AZ3S-M is characterized by convenience, reliability, and ergonomic use. It also meets all international regulatory requirements and has the relevant certificates.
Hangcha forklift CDD12-AZ3S-M has the following technical specifications:
This electric stacker is ideal for use in factories and other manufacturing facilities, warehouses, agriculture, and more.
This model CDD12-AZ3S-M is equipped with an economical and reliable engine. All parts undergo quality control at every stage of production.
Our specialists are ready to offer you a full range of services for selecting Hangcha electric forklift stackers. Requests are processed daily. We are always ready to help you in your business.
Price on request
| Characteristics | ||
| Brand | Hangcha | |
| Model Name | CDD12-AZ3S-M | |
| Control Type | Standing | |
| Rated/Residual Load Capacity | 1200 | |
| Center of Gravity | 500 | |
| Weight | ||
| Service Weight, Incl. Battery | 1800 | |
| Dimensions | ||
| Fork Lift Height | 2700 | |
| Overall Length | 2202 | |
| Overall Width | 1074 | |
| Ground Clearance at Wheelbase Center | 5.5 | |
| Stacker Aisle Width, Loaded with 1000x1200mm Pallets | 2617 | |
| Stacker Aisle Width, Loaded with 800x1200mm Pallets | 2654 | |
| Outer Turning Radius | 1600 | |
| Engine | ||
| Travel Motor Power S2 60 min | 1.5/2.0 | |
| Lift Motor Power S3 15% | 3/4 | |
| Battery Voltage, Rated Capacity K5 | 24/280 | |
| Drive Motor | AC | |
| Control System Manufacturer | Curtis ZAPI | |
