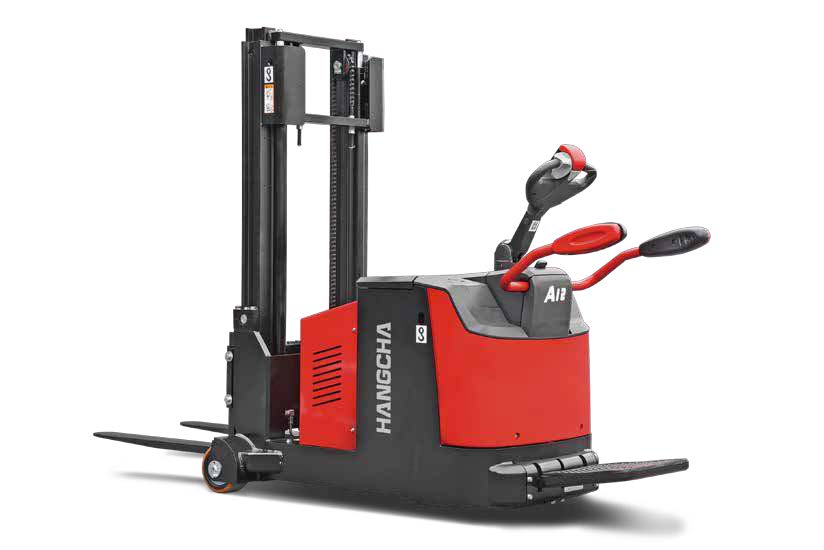

Electric fork stacker Hangcha CDD20-AZ3S-P is characterized by convenience, reliability, and ergonomic use. In addition, it meets all international regulatory requirements and has the appropriate certificates.
Hangcha forklift CDD20-AZ3S-P has the following technical characteristics:
Electric fork stacker Hangcha CDD20-AZ3S-P is characterized by convenience, reliability, and ergonomic use. In addition, it meets all international regulatory requirements and has the appropriate certificates.
Hangcha forklift CDD20-AZ3S-P has the following technical characteristics:
This electric stacker forklift is ideal for use in factories and other production facilities, warehouse areas, agriculture, etc.
This model CDD20-AZ3S-P is equipped with an economical and reliable engine. All parts undergo quality control at every stage of production.
Our specialists are ready to offer you a full range of services for selecting Hangcha electric fork stackers. Requests are processed daily. We are always ready to help you in your business.
Price upon request
| Characteristics | ||
| Brand | Hangcha | |
| Model Name | CDD20-AZ3S-P | |
| Control Type | Standing | |
| Rated/Residual Load Capacity | 2000 | |
| Center of Gravity | 500 | |
| Weight | ||
| Service Weight, Incl. Battery | 2316 | |
| Dimensions | ||
| Fork Lift Height | 2700 | |
| Overall Length | 3032 | |
| Overall Width | 800/1030 | |
| Ground Clearance at Wheelbase Center | 60 | |
| Stacker Aisle Width, Loaded with 1000x1200mm Pallets | 3228 | |
| Stacker Aisle Width, Loaded with 800x1200mm Pallets | 3339 | |
| Outer Turning Radius | 1830 | |
| Engine | ||
| Travel Motor Power S2 60 min | 03.04.00 | |
| Lift Motor Power S3 15% | 3.2/4.29 | |
| Battery Voltage, Rated Capacity K5 | 24/350 | |
| Drive Motor | ZAPI | |
