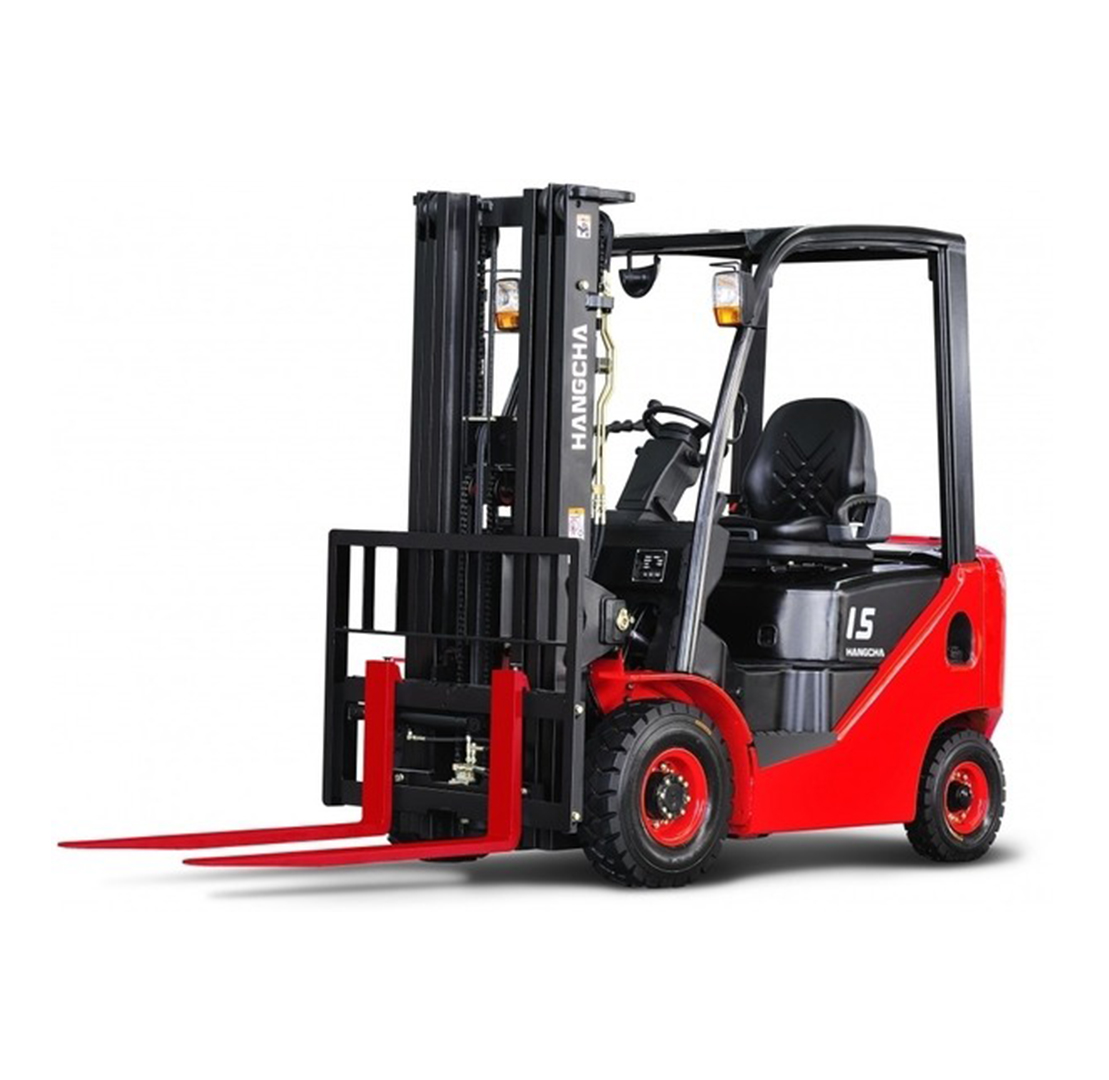

Hangcha CPCD15-XF32F diesel forklift is characterized by convenience, reliability, and ergonomic use. It also meets all international regulatory requirements and has the relevant certificates.
Hangcha CPCD15-XF32F has the following technical specifications:
Hangcha CPCD15-XF32F diesel forklift is characterized by convenience, reliability, and ergonomic use. It also meets all international regulatory requirements and has the relevant certificates.
Hangcha CPCD15-XF32F has the following technical specifications:
This forklift is ideal for use in factories and other manufacturing facilities, warehouses, agriculture, and more.
This model CPCD15-XF32F is equipped with an economical and reliable engine. All parts undergo quality control at every stage of production.
Our specialists are ready to offer you a full range of services for selecting Hangcha forklifts. Requests are processed daily. We are always ready to help you in your business.
Hangcha Group Company Ltd. was founded in 1956. From a small workshop, it grew by the end of the century into one of the largest companies in the world. Every year Hangcha produces 80.000 units of warehouse equipment. This includes high-end forklifts, reach trucks, stackers, and pallet trucks – everything a business or commercial organization might need. This quality equipment successfully competes with European counterparts, decisively winning on both quality and price.
Price on request
| Main Characteristics | |
| Full Name | Diesel forklift truck Hangcha CPCD15-XW32F |
| Load Capacity, kg | 1500 |
| Total Weight, kg | 2650 |
| Engine | |
| Engine Model | 4TNE92 |
| Engine Type | diesel |
| Number and Arrangement of Cylinders | 4 |
| Engine Displacement, cm3 | 2659 |
| Engine Power, kW (hp) | 32.8 |
| Rated Speed, rpm | 2450 |
| Engine Manufacturer (Brand) | Yanmar |
| Fuel System | |
| Max Speed, km/h | 19.3 |
| Dimensions | |
| Load Center, mm | 500 |
| Length to Fork Face, mm | 2285 |
| Overall Width, mm | 1080 |
| Fluid Capacities | |
| Fuel Tank, l | 50 |
| Operating Characteristics | |
| Max Lift Height, mm | 3000-6000 |
| Max Traction Force, kN | 14.6 |
| Driving Characteristics | |
| Control Type | seated |
| Attachments | |
| Working Attachment Type | forks |
| Forklift Characteristics | |
| Lift Speed, Loaded/Unloaded, mm/s | 580/- |
| Lowering Speed, Loaded/Unloaded, mm/s | 500/- |
