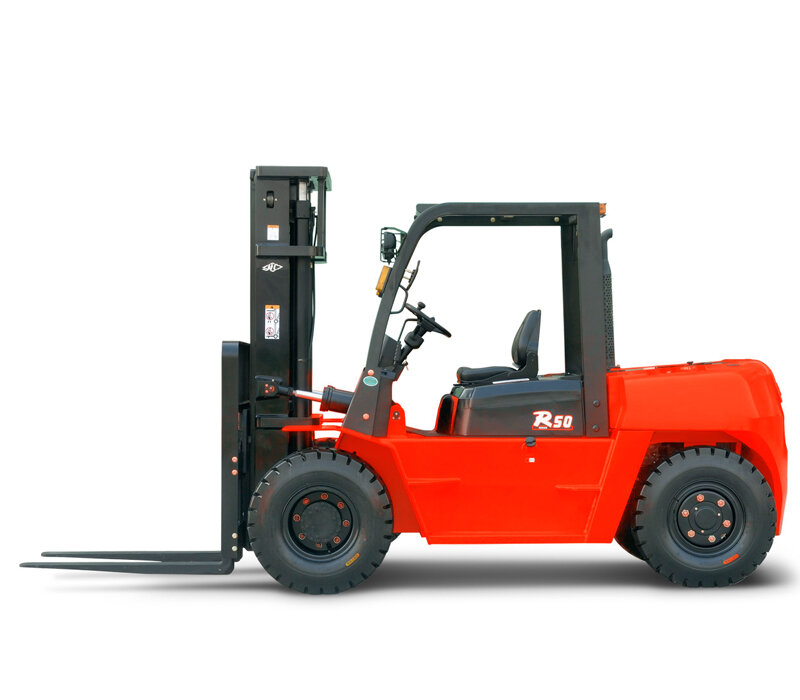

Hangcha CPCD50-RXG53 diesel forklift is characterized by convenience, reliability, and ergonomic use. It also meets all international regulatory requirements and has the relevant certificates.
Hangcha CPCD50-RXG53 has the following technical specifications:
Hangcha CPCD50-RXG53 diesel forklift is characterized by convenience, reliability, and ergonomic use. It also meets all international regulatory requirements and has the relevant certificates.
Hangcha CPCD50-RXG53 has the following technical specifications:
This forklift is ideal for use in factories and other manufacturing facilities, warehouses, agriculture, and more.
This model CPCD50-RXG53 is equipped with an economical and reliable engine. All parts undergo quality control at every stage of production.
Our specialists are ready to offer you a full range of services for selecting Hangcha forklifts. Requests are processed daily. We are always ready to help you in your business.
Hangcha Group Company Ltd. was founded in 1956. From a small workshop, it grew by the end of the century into one of the largest companies in the world. Every year Hangcha produces 80.000 units of warehouse equipment. This includes high-end forklifts, reach trucks, stackers, and pallet trucks – everything a business or commercial organization might need. This quality equipment successfully competes with European counterparts, decisively winning on both quality and price.
Price on request
| Manufacturer's Type Designation | CPCD50-RXG53 | |
| Power Type: electric (battery or mains), diesel, gasoline, LPG | Diesel | |
| Rated Capacity | Q (kg) | 5000 |
| Load Center | c (mm) | 500 |
| Load Distance from Drive Axle Center to Forks | x (mm) | 555 |
| Rear Overhang | mm | 560 |
| Wheelbase | y (mm) | 2100 |
| Service Weight | kg | 6850 |
| Axle Loading, Laden Front/Rear | kg | 10450/1400 |
| Axle Loading, Unladen Front/Rear | kg | 3000/3850 |
| Tire Size, Front | 300-15-18PR | |
| Tire Size, Rear | 7.00-12-12PR | |
| Tread, Front | b10 (mm) | 1190 |
| Tread, Rear | b11 (mm) | 1130 |
| Mast Tilt, Forward/Backward | % (°) | 6/12 |
| Height, Mast Lowered | h1 (mm) | 2245 |
| Free Lift | h2 (mm) | 160 |
| Lift Height | h3 (mm) | 3000 |
| Height, Mast Extended | h4 (mm) | 4365 |
| Overhead Guard Height | h6 (mm) | 2250(2290*) |
| Length to Fork Face | l2 (mm) | 3215 |
| Overall Width | b1 (mm) | 1490 |
| Fork Dimensions ISO 2331 | s/e/l (mm) | 1070x150x50 |
| Ground Clearance, Below Mast | m1 (mm) | 170 |
| Ground Clearance, Center of Wheelbase | m2 (mm) | 230 |
| Turning Radius | Wa (mm) | 2810 |
| Aisle Width for Right-Angle Stacking | mm | 3365 |
| Travel Speed, Laden/Unladen | km/h | -/26 |
| Lift Speed, Laden/Unladen | m/s | 0.380/- |
| Lowering Speed, Laden/Unladen | m/s | 0.500/- |
| Traction Force, Laden/Unladen | N | 39100/- |
| Gradeability, Laden/Unladen | % | 20/- |
| Engine Manufacturer/Type | XINCHAI/4D35ZG31-005 | |
| Emission Standard | CN Stage III | |
| Engine Power per DIN ISO 1585 | kw | 60 |
| Rated Speed | min | 2200 |
| Number of Cylinders/Engine Displacement | (-)/(cm) | 4/3470 |
| Battery Voltage/Rated Capacity | V/Ah | 24/60 |
| Rated Torque | N·m/r/min | 300/1500-1800 |
| Bore x Stroke | mm | 98X105 |
| Transmission Manufacturer | China | |
| Transmission Type | Powershift | |
| Gears FWD/RVS | 2/1 | |
| Working Pressure for Attachments | bar | 180 |
| Fuel Tank Capacity | liters | 80 |
