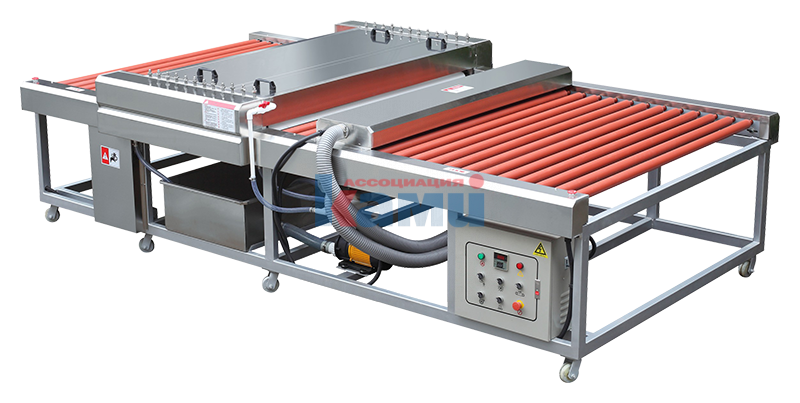

Glass Washing Machines JET GLASS. Models JW-12, JW-16 and JW-18

Contact our lead specialist

+7 (702) 489 99 98

Price on request

Max. glass width: 1.8 m

Min. glass size: 0.1 x 0.15 m

Processing speed: 0.7 - 5.0 m/min

Number of brushes: 8 pcs.

Glass thickness: 3 - 15 mm

Order product Ask a question

Optimal choice

Low prices and a wide range of products

Always close by

A wide network of offices

On-time delivery

Prompt delivery and unloading of goods

Description

Model	Old price	New price
JW-12	~~531,388 RUB~~	391,161 RUB
JW-16	~~671,615 RUB~~	590,431 RUB

PURPOSE:

Designed for simultaneous washing of both glass surfaces in a single pass by four pairs of brushes, in order to degrease the surfaces and remove residual cerium oxide after edge polishing and abrasive material after frosting, etc.

APPLICATION AREA:

Enterprises and workshops manufacturing glass products, producing insulated glass units for window frames of various wood and plastic designs, furniture production glass parts workshops (facades, shelves, countertops, etc.), and construction industry enterprises.

RESULTING PRODUCTS:

DISTINCTIVE FEATURES:

Adjustable stepless feed speed
The washing machine body is made of stainless steel
Adjustment of brush rollers to the glass thickness
Four pairs of washing brushes
Through-type drying chamber
Powerful drying chamber fan
Coolant recirculation
Moisture-protected electric motors
Convenient machine control system
Water cutoff "air knife" *
Washing of Low-E coated glass *
Infrared drying lamps *
Light-based quality control *
Water heating *

DESIGN FEATURES:

	WASHING MACHINE BODY Made of stainless steel with increased corrosion resistance, which ensures a long service life for the machine.
	FEED CONVEYOR MECHANISM The glass is fed into the washing zone in a horizontal plane using a conveyor with rubberized rollers. This ensures reliable and gentle movement of the glass without damaging the surface.
	GLASS FEED DRIVE INTO THE PROCESSING ZONE Performed by a gear motor via a chain drive. The feed speed is adjusted steplessly by rotating the variator handwheel. This ensures uniform feed and selection of the optimal speed for the glass to pass through the washing section for higher-quality cleaning of the glass surfaces.
	WASHING BRUSH ROLLERS Washing brush rollers with abrasion-resistant bristles ensure the most thorough cleaning of the glass surfaces passing between the rollers.
	THROUGH-TYPE DRYING CHAMBER Installed separately from the washing zone along the direction of glass feed. Ensures complete removal of water from the glass surfaces using a directed air flow. Guaranteed drying without heating the air reagent significantly reduces the machine's energy consumption.
	DRYING CHAMBER FAN Supplies air to the glass surfaces at a constant air flow speed. Distributes the air flow evenly throughout the drying chamber.
	TANK WITH PUMP The washing machine is equipped with a tank with a water recirculation system for reuse.
	WASHING MACHINE CONTROL PANEL The control panel, located on the front wall of the electrical cabinet, provides comprehensive control of all the machine's working units.

ADDITIONAL CONFIGURATION: *

	WATER CUTOFF The drying chamber can be equipped with "air knives" made of stainless steel. The high air flow pressure in the "air knives" during drying ensures high-quality drying of the glass surfaces and edges, increases machine productivity, and also saves electricity, since there is no need to install an air heating system.
	LOW-E COATED GLASS WASHING FUNCTION Brushes with fine bristles for washing Low-E coated glass are installed in the washing section.
	GLASS HEATING For high-quality drying of small parts, the washing machine can additionally be equipped with three infrared drying lamps.
	LIGHTING Lamps for light-based inspection of surface washing quality of the glass on the output conveyor of the washing machine.
	WATER HEATING Additionally, the water tanks are equipped with a water heating function and filters for cleaning the water.

* Due to possible equipment upgrades, please verify the technical specifications.

Model	JW-12	JW-16	JW-18
Min. glass dimensions, mm	100 x 150	150 x 150	150 x 150
Max. width, mm	1200	1600	1800
Thickness, mm	3 - 15	3 - 15	3 - 15
Glass feed speed, m/min	0,7 - 4,5	0,7 - 4,5	0,7 - 4,5
Total installed power, kW	8	10	12
Number of brushes, pcs.	8	8	8
Number of pressure rollers, pcs.	6	6	6
Overall dimensions:
Length, mm	3400	4100	4100
Width, mm	1600	2000	2200
Height, mm	1100	1100	1100
Weight, kg	600	720	840
