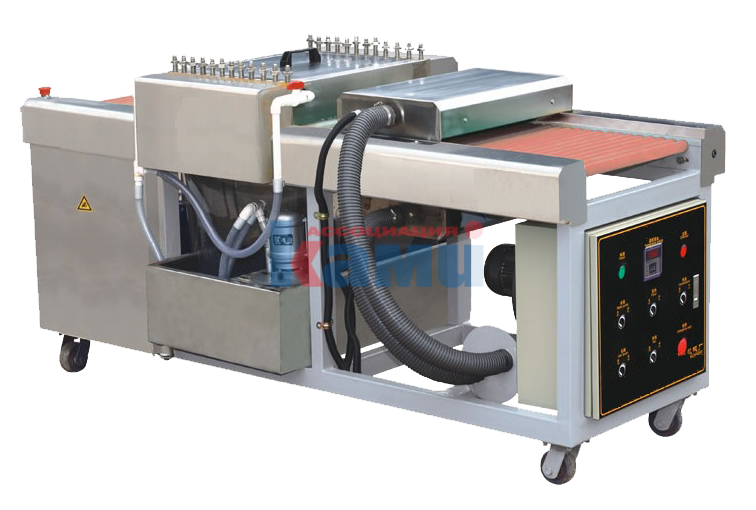

Glass Washing Machines JET GLASS. Models JW-5 and JW-8

Contact our lead specialist

+7 (702) 489 99 98

Price on request

Max. glass width: 0.45 - 0.75 m

Min. glass size: 0.03 x 0.03 m

Processing speed: 0.7 - 4.5 m/min

Number of brushes: 8 pcs.

Glass thickness: 2 - 15 mm

Order product Ask a question

Optimal choice

Low prices and a wide range of products

Always close by

A wide network of offices

On-time delivery

Prompt delivery and unloading of goods

Description

PURPOSE:

Designed for simultaneous washing of both glass surfaces in a single pass by four pairs of brushes, in order to degrease the surfaces and remove residual cerium oxide after edge polishing and abrasive material after frosting, etc.

APPLICATION AREA:

Enterprises and workshops manufacturing glass products, furniture production glass parts workshops.

RESULTING PRODUCTS:

DISTINCTIVE FEATURES:

Adjustable stepless feed speed
The washing machine body is made of stainless steel
Adjustment of brush rollers to the glass thickness
Four pairs of washing brushes
Through-type drying chamber
Powerful drying chamber fan
Coolant recirculation
Moisture-protected electric motors
Convenient machine control system
Washing of Low-E coated glass *
Infrared drying lamps *

DESIGN FEATURES:

	WASHING MACHINE BODY Made of stainless steel with increased corrosion resistance, which ensures a long service life for the machine.
	FEED CONVEYOR MECHANISM The glass is fed into the washing zone in a horizontal plane using a conveyor with rubberized rollers. This ensures reliable and gentle movement of the glass without damaging the surface.
	GLASS FEED DRIVE INTO THE PROCESSING ZONE Performed by a gear motor via a chain drive. The feed speed is adjusted steplessly by rotating the variator handwheel. This ensures uniform feed and selection of the optimal speed for the glass to pass through the washing section for higher-quality cleaning of the glass surfaces.
	WASHING BRUSH ROLLERS Washing brush rollers with abrasion-resistant bristles ensure the most thorough cleaning of the glass surfaces passing between the rollers.
	THROUGH-TYPE DRYING CHAMBER Installed separately from the washing zone along the direction of glass feed. Ensures complete removal of water from the glass surfaces using a directed air flow. Guaranteed drying without heating the air reagent significantly reduces the machine's energy consumption.
	DRYING CHAMBER FAN Supplies air to the glass surfaces at a constant air flow speed. Distributes the air flow evenly throughout the drying chamber.
	TANK WITH PUMP The washing machine is equipped with a tank with a water recirculation system for reuse.
	WASHING MACHINE CONTROL PANEL The electrical cabinet with the control panel provides comprehensive control of all the machine's working units.

ADDITIONAL CONFIGURATION: *

	GLASS HEATING For high-quality drying of small parts, the washing machine can additionally be equipped with three infrared drying lamps.
	LIGHTING Lamps for light-based inspection of surface washing quality of the glass on the output conveyor of the washing machine.
	WATER HEATING Additionally, the water tanks are equipped with a water heating function and filters for cleaning the water.

* Due to possible equipment upgrades, please verify the technical specifications.

Model	JW-5	JW-8
Min. glass dimensions, mm	30 x 30	30 x 30
Max. width, mm	450	750
Thickness, mm	2 - 12	3 - 15
Glass feed speed, m/min	0,7 - 5	0,7 - 5
Total installed power, kW	7	7,5
Number of brushes, pairs	8	8
Number of pressure rollers, pairs	6	6
Overall dimensions:
Length, mm	1900	2200
Width, mm	900	1200
Height, mm	1000	1050
Weight, kg	380	450
