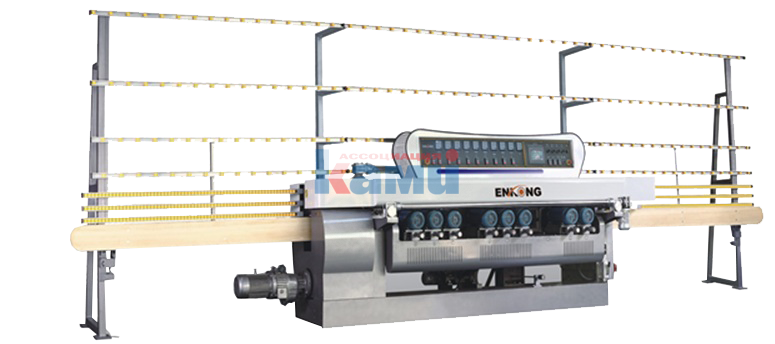

Min. size: 30 x 30 mm
Glass thickness: 3 - 19 mm
Number of spindles: 9 pcs
Max. bevel width: 40 mm
Power: 21 kW
PURPOSE:
Designed for forming, grinding, and polishing a straight-line bevel at a specified angle, and for grinding the glass edge.
APPLICATION AREA:
Enterprises and workshops producing mirrors and glass products, furniture production glass-processing workshops, and construction industry enterprises.
RESULTING PRODUCTS:
PROCESSING DIAGRAM:
DISTINCTIVE FEATURES:
DESIGN FEATURES:
|
MASSIVE BED The welded bed structure made of thick-walled profile metal meets all regulatory requirements for rigidity, bending, and torsion. The high vibration resistance of the bed ensures high-quality glass edge processing. |
|
WORKING LOADING AND UNLOADING CONVEYOR The horizontal belt of the loading conveyor serves as the initial reference surface for setting the grinding units to the removal amount and moves the glass onto the feed conveyor mechanism. Adjusting the horizontal position of the conveyor feed surface with the adjustment screw ensures precise glass processing geometry.The unloading conveyor ensures convenient exit of the processed product from the processing zone and its reception by the operator for removal from the machine. |
|
GLASS FEED CONVEYOR MECHANISM Glass feeding in the grinding unit processing zone is carried out by rubberized conveyor belts that firmly clamp the workpiece between them.Glass vibration in the processing zone is completely eliminated, ensuring high-quality processing of the product |
|
TOOTHED BELT OF LOADING AND UNLOADING CONVEYOR The workpiece is fed into the processing zone by the conveyor's toothed belt, which ensures uniform workpiece movement. The conveyor's toothed belt tension is adjusted using screws. |
|
VERTICAL ROLLER SUPPORT GUIDES Provide reliable positioning of the glass in the vertical plane at all processing stages, from loading to unloading. The height arrangement of the rollers allows processing glass of various sizes. The rollers are made of an abrasion- and wear-resistant material. |
|
STEPLESS FEED SPEED ADJUSTMENT The machine's feed speed is adjusted using a variator. This allows setting the required feed speed depending on the parameters of the glass being processed (glass thickness and removal amount). High processing quality and long service life of the feed drive motor are achieved by eliminating overloads. |
|
HIGH-PRECISION SPINDLE UNITS The spindle unit consists of an electric motor and is mounted on rigid guides. The tool, rigidly fixed on the spindle, ensures reliable, vibration-free, high-quality processing of the bevel and glass edge. The processing tool is secured using a mechanical fixing system. |
|
SPINDLE DRIVE ELECTRIC MOTORS Equipping the machine with CE-compliant electric motors ensures the reliability and longevity of its operation. |
|
SPINDLE UNIT GUIDES Rigid, high-precision guides made of hardened steel ensure precise parallel movement of the spindle units when adjusting the bevel removal amount and glass edge grinding. The spindle units are adjusted to the removal amount using a graduated handle with an accuracy of +/- up to 0.05 mm. |
|
ROTATION DRIVE FOR THE BEVEL GROUP OF SPINDLE UNITS The spindle units that process the bevel on the glass are arranged in a row on a powerful single platform. The platform rotates around an axis to the set bevel processing angle by means of an electric motor with bevel gears connected by a synchronizing shaft, ensuring smooth and uniform changes in the processing angle. |
|
CENTRALIZED LUBRICATION UNIT Allows lubrication in hard-to-reach areas of spindle unit guides, conveyor chain links, drives, etc. This ensures convenient maintenance and reduces wear on units and mechanisms. |
|
LOAD AMMETERS FOR SPINDLE UNIT DRIVES Ammeters are installed on the control panel for each grinding unit drive motor, allowing visual monitoring of the grinding wheel load during glass edge processing. This ensures the most efficient processing mode, preventing overload of the electric motors. |
|
MACHINE CONTROL PANEL AND SAFETY SYSTEM The ergonomic control panel, conveniently located on the front of the machine, ensures easy maintenance and machine control. Two emergency stop buttons at the machine's input and output provide enhanced operating safety. |
|
COOLING SYSTEM The machine is equipped with a coolant recirculation system. The water tanks are made of stainless steel, ensuring their durability and protecting the tank surfaces from corrosion. |
|
CERIUM OXIDE The machine is equipped with a cerium oxide recirculation system. The tank is made of stainless steel, ensuring its durability and protecting the surface from corrosion. |
|
CNC ON XM 351 A (PLC) The conveniently located control panel, installed on the front of the machine, is designed to adjust all glass processing steps. The main instruments monitoring the units allow automatic tracking of the load on the grinding wheels during glass edge processing. |
ADDITIONAL CONFIGURATION:
|
GLASS WASHING UNIT |
| Type | XM 351 A | |
| Processing speed, m/min | 0.8 – 4.0 | |
| Minimum product dimensions, mm | 30 x 30 | |
 |
Glass thickness, a, mm |
3 – 19 |
|
Residual thickness, b, mm |
not less than 1.5 | |
|
Bevel width, B, mm |
40 |
|
|
Bevel angle, Ø, ° |
3 – 30 / 45 (Ø = arcsin a – b / B) | |
|
Number of spindles, pcs. |
9 | |
| Slide guide height, mm | 842 | |
| Loading conveyor length, mm | 2345 | |
| Total weight, kg | 4500 | |
| Power, kW | 21 | |
| Main unit dimensions: | ||
| Length, mm | 4966 | |
| Width, mm | 1225 | |
| Height, mm | 1620 | |
| Overall dimensions: | ||
| Length, mm | 8250 | |
| Width, mm | 1250 | |
| Height, mm | 2520 | |
