Min. size: 25 x 25 mm
Glass thickness: 3 - 19 mm
Number of spindles: 10; 11; 12 pcs.
Max. bevel width: 50; 60 mm
Power: 25; 27; 28 kW
PURPOSE:

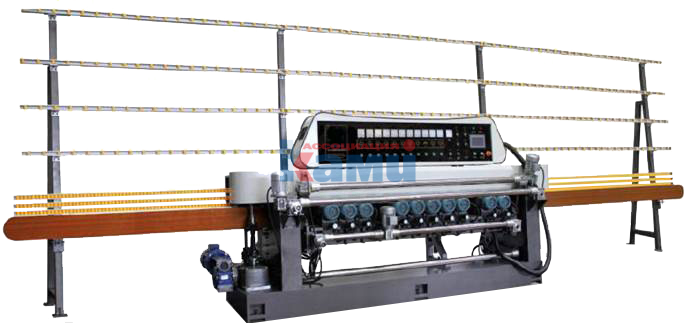

Designed for forming, grinding, and polishing a straight-line bevel at a specified angle, and for grinding the glass edge.
APPLICATION AREA:
Enterprises and workshops producing mirrors and glass products, furniture production glass-processing workshops, and construction industry enterprises.
DESIGN FEATURES:
 | MASSIVE BED The welded bed structure made of thick-walled profile metal meets all regulatory requirements for rigidity, bending, and torsion. The high vibration resistance of the bed ensures high-quality bevel making. |
   | GLASS FEED CONVEYOR MECHANISM
|
 | WORKING INPUT/OUTPUT UNLOADING CONVEYOR Ensures convenient feeding of the glass into the processing zone and the exit of the processed product from the processing zone, using a reinforced conveyor belt from the Italian company Barberi. |
 | SINGLE FEED DRIVE The loading conveyor, feed mechanism, and unloading conveyor are all driven by a single gear motor with a variator, which ensures reliable synchronization of feed speeds across all mechanisms. This achieves uniform feed throughout the entire processing cycle. |
 | CONVEYOR TENSION ADJUSTMENT Conveyor tension is adjusted using screws, which ensures uniform movement of the workpiece being fed. |
 | SPINDLE POSITIONING UNITS These units are the most important element of any machine. The cup grinding wheel, rigidly mounted on the spindle shaft, ensures high-quality bevel processing. The grinding wheel is secured using a mechanical fixing system. The cup grinding wheel, rigidly mounted on the spindle, ensures reliable, vibration-free, high-quality edge processing. Equipping the machine with CE-compliant electric motors ensures the reliability and longevity of its operation. |
 | VERTICAL ROLLER SUPPORT GUIDES Provide reliable positioning of the glass in the vertical plane at all processing stages, from loading to unloading. The height arrangement of the rollers allows processing glass of various sizes. The rollers are made of an abrasion- and wear-resistant material. |
 | FINE ADJUSTMENT OF POLISHING SPINDLES Adjustment of the polishing spindles (approach to the glass) and setting of the clamping force are performed using pneumatic cylinders. Finer adjustment is achieved, which compensates for wear of the polishing wheels and ensures high quality of the processed glass bevel surface. |
 | SPINDLE ELECTRIC MOTORS Equipping the machine with CE-compliant electric motors manufactured by ABB ensures the reliability and longevity of its operation. |
 | GRINDING UNIT GUIDES Rigid, high-precision guides made of hardened steel ensure precise parallel movement of the spindles using a graduated handle |
 | SPINDLE POSITION ADJUSTMENT The grinding units are adjusted to the removal amount using a graduated handle with an accuracy of up to 0.05 mm. |
 | COOLING SYSTEM The machine is equipped with a coolant recirculation system. The set includes two tanks for closed-loop water circulation. The tanks are made of stainless steel, ensuring their durability and eliminating any possibility of corrosion. The first tank is for water-cooling the tools of the grinding group; the second tank is for the polishing group of wheels with a cerium oxide solution for the polishing group tools. The cooling system provides efficient water supply to the tool. |
 | LOAD AMMETERS FOR SPINDLE UNIT DRIVES Ammeters are installed on the control panel for each grinding and polishing unit drive motor, allowing visual monitoring of the tool load during glass edge processing. This ensures the most efficient processing mode, preventing overload of the electric motors. |
 | MACHINE CONTROL PANEL AND SAFETY SYSTEM The ergonomic control panel, conveniently located on the front of the machine, ensures easy maintenance and machine control. The emergency stop button at the machine's input provides enhanced operating safety. |
 | CENTRALIZED LUBRICATION UNIT Allows lubrication in hard-to-reach areas of spindle unit guides, conveyor chain links, drives, etc. This ensures convenient maintenance and reduces wear on units and mechanisms. |
 | PLC CONTROL PANEL The conveniently located control panel, installed on the front of the machine, is designed for entering, adjusting, and monitoring all glass processing steps. The main instruments monitoring the units allow automatic tracking of the load on the grinding wheels during glass edge processing. |
| PLC-ADJUSTABLE BEVEL ANGLE | |
| STEPLESS FEED SPEED ADJUSTMENT | |
| MAIN CONVEYOR SYSTEM ON BALL BEARINGS | |
| SINGLE FEED DRIVE | |
| LOAD INDICATORS | |
| FLAT ELASTIC CONVEYOR ENSURES SMOOTH GLASS MOVEMENT. | |
| EC-COMPLIANT ELECTRIC MOTORS | |
| DIGITAL SPINDLE SETTING COUNTERS | |
| CENTRALIZED LUBRICATION UNIT | |
| GALVANIC TREATMENT OF PARTS | |
| RELIABLE SAFETY SYSTEM | |
| COMPONENTS IN CONTACT WITH WATER ARE MADE OF STAINLESS STEEL | |
| THE TRACKS OF THE MAIN AND PRESSURE CONVEYORS ARE MOVED BY TWO CHAINS ON EACH CONVEYOR | |
| USER-FRIENDLY INTERFACE | |
| CERIUM OXIDE RECIRCULATION | |
STANDARD CONFIGURATION:
 | DIAMOND WHEELS FOR BEVEL FORMING |
 | PERIPHERAL WHEEL FOR GLASS EDGE GRINDING |
 | RUBBER-DIAMOND WHEELS FOR BEVEL GRINDING |
 | POLISHING WHEELS |
| MAIN CONVEYOR WASHING |
| Model | XM361B PLC | XM371B PLC | XM471B PLC |
| Minimum dimensions of processed glass, mm | 25 x 25 | 25 x 25 | 25 x 25 |
| Thickness of processed glass, mm | 3 - 19 | 3 - 19 | 3 - 19 |
| Number of spindles, pcs. | 10 | 11 | 12 |
| Bevel angle, ° | 3 - 45 | 3 - 45 | 3 - 45 |
| Maximum bevel width, mm | 50 | 60 | 60 |
| Conveyor speed (stepless), m/min | 0,5 - 10 | 0,5 - 10 | 0,5 - 10 |
| Total installed power, kW | 25 | 27 | 28 |
| Overall dimensions: | |||
| Length, mm | 7600 | 8000 | 8000 |
| Width, mm | 1300 | ||
| Height, mm | 2200 | ||
| Weight, kg | 5000 | 6500 | 7000 |
