Min. size: 300 x 300 mm
Processing speed: 1 - 6.5 m/min
Glass thickness: 3 - 25 mm
Power: 34; 47 kW
PURPOSE:

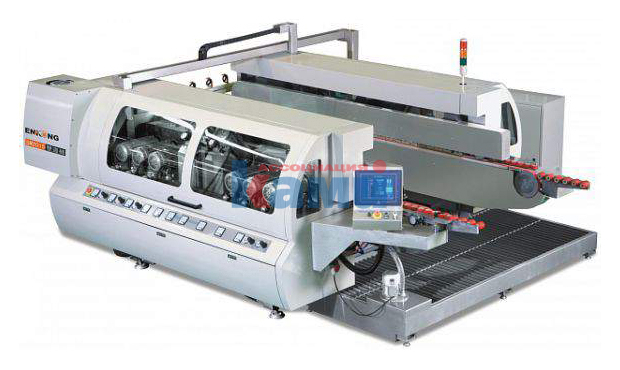

The machine is designed for fine grinding and polishing of the glass edge to eliminate irregularities after breaking, and for profiling a straight euro edge with bevels at a 45˚ angle on both sides in a single pass.
APPLICATION AREA:
The machine is designed for the mass production of a wide range of glass products.
RESULTING PRODUCTS:
PROCESSING DIAGRAMS:
SM 16 | SM 22 |
DISTINCTIVE FEATURES:
DESIGN FEATURES:
| | CONTROL PANEL AND MONITORING INSTRUMENTS The conveniently located control panel, installed on the front of the machine, is designed to adjust all glass processing steps. |
| | GLASS FEED CONVEYOR SYSTEM The feed conveyor system with a rubberized belt and specially designed clamps ensures reliable fixation of the glass during processing. |
| | COOLING SYSTEM The machine is equipped with a coolant recirculation system. The water tanks are made of stainless steel, which ensures their durability and protects the tank surface from corrosion. |
| | GRINDING UNITS The grinding unit ensures high-quality glass edge processing (GOST 111-2001). Adjustment of the grinding spindles (advance to the glass) and setting of the clamping force are performed using pneumatic cylinders designed for finer adjustment, which compensates for wear of the grinding wheels and ensures high quality of the processed glass edge surface. |
| | SPINDLE DRIVE ELECTRIC MOTORS Equipping the machine with CE-compliant electric motors ensures the reliability and longevity of its operation. |
ADDITIONAL CONFIGURATION:
| ROTARY TABLE Used for rotating the workpiece and feeding it to the machine for further processing. |
| Model | SM 16 | SM 22 |
| Maximum workpiece width, mm | 1500 2500 3000 4000 | 1500 2500 3000 4000 |
| Minimum workpiece size, mm | 300 x 300 | 300 x 300 |
| Permissible thickness of processed glass: min/max, mm | 3 - 25 | 3 - 25 |
| Processing speed, m/min | 1 - 6,5 | 1 - 6,5 |
| Number of grinding units, pcs. | 8 - 8 | 11 - 11 |
| Total installed power, kW | 34 | 47 |
| Overall dimensions: | ||
| Length, mm | 4640 | 6140 |
| Width, mm | 2360 3360 3860 4860 | 2360 3360 3860 4860 |
| Height, mm | 1780 | 1780 |
| Weight, kg | 5000 5500 6000 6500 | 6500 7000 7500 8000 |
