Ø holes: 4 - 220 mm
Min. size: 150 x 150 mm
Max. size: 2.6 x 2.4 m
Power: 4.95 kW
Weight: 1100 kg
PURPOSE:

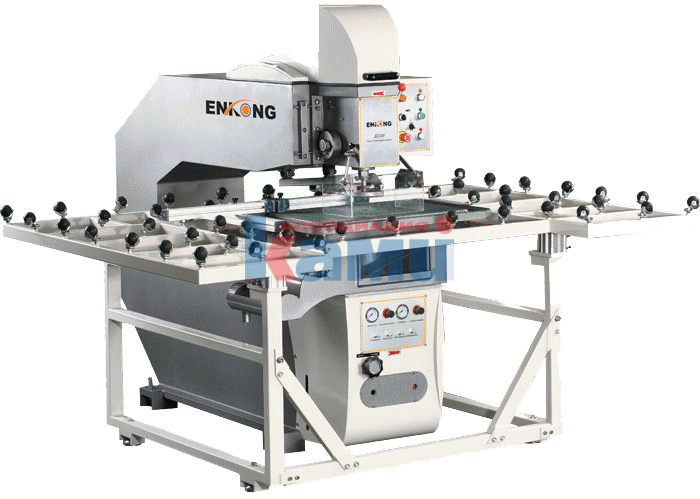

Designed for drilling holes in glass sheets without chipping through two-sided processing.
APPLICATION AREA:
Enterprises and workshops processing glass parts of various production volumes. Furniture plants and factories using glass in their products. Glass workshops for custom orders.
RESULTING PRODUCTS:
PROCESSING DIAGRAM:
DISTINCTIVE FEATURES:
DESIGN FEATURES:
| | BED A box-shaped bed made of thick-walled metal, with increased rigidity and vibration resistance, undergoing special heat treatment. This ensures drilling precision and long machine service life without loss of accuracy. |
| | MAIN WORK TABLE Designed for positioning the glass being processed in the drilling zone using precisely set stops to size. The table surface is lined with a rubber material, which creates the best contact between the glass and the table's working surface during processing. |
| | ADDITIONAL WORK TABLE A welded construction made of metal profile with rubber rollers installed on it. The rollers allow large workpieces to be moved across the table effortlessly. |
| | LIFTING OF THE ADDITIONAL WORK TABLE Required to allow free movement of large glass sheets over the rollers relative to the main rubberized table. It is provided by four pneumatic cylinders installed at the corners of the table. |
| | TOP GLASS CLAMP Ensures firm fixation of the workpiece during processing. Prevents vibration and displacement of the part being processed. Activated from the main pushbutton panel. |
| | DRILLING SPINDLE MOVEMENT SYSTEM WITH HYDRAULIC DAMPER The drilling spindles are moved by pneumatic cylinders on command from a button on the control panel. The hydraulic damper reduces the drilling spindle speed as the drill approaches the glass surface. This achieves a smooth entry of the drill into the glass to a set depth, ensuring a high-quality surface of the drilled hole. |
| | CENTRALIZED LUBRICATION UNIT Allows lubrication in hard-to-reach areas of spindle unit guides, drives, etc. This ensures convenient maintenance and reduces wear on units and mechanisms. |
| | COOLING SYSTEM The machine is equipped with a coolant recirculation system. The water tanks are made of stainless steel, ensuring their durability and protecting the tank surfaces from corrosion. |
| | MACHINE CONTROL PANEL AND SAFETY SYSTEM The ergonomic control panel, conveniently located on the front of the machine, ensures easy maintenance and machine control. The emergency stop button provides enhanced operating safety. |
| | TWO-SIDED DRILLING Using two-sided hole processing in glass, thanks to pre-drilling from the opposite side, ensures chip-free drilling on the glass surface around the hole. |
| Model | ZJ130 |
| Diameter of drilled holes, mm | 4 - 200 |
| Dimensions of processed glass: | |
| Max. length, mm | 2700 |
| Max. width, mm | 2200 |
| Main work table dimensions, mm | 800 x 800 |
| Drilling spindle rotation speed, rpm | 1400 / 2800 |
| Total installed power, kW | 4.95 |
| Overall dimensions: | |
| Length, mm | 2200 |
| Width, mm | 2500 |
| Height, mm | 1700 |
| Weight, kg | 1100 |
