Ø of holes: 4 - 65 (220) mm
Min. size: 150 x 150 mm
Max. size: 2.6 x 2.4 m
Power: 4.95 kW
Weight: 1000 kg
PURPOSE:

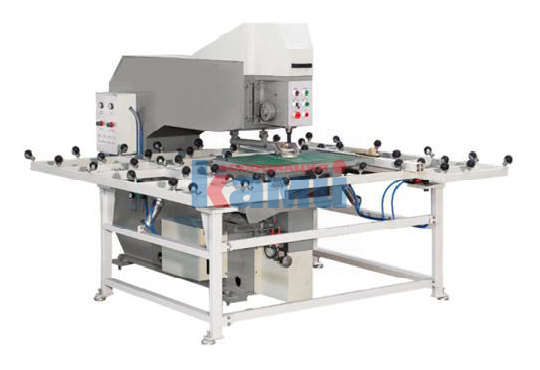

Designed for drilling holes in the glass surface without chipping thanks to two-sided processing.
APPLICATION AREA:
Enterprises and workshops processing glass parts of various production volumes. Furniture plants and factories that use glass in their products. Glass workshops for custom orders.
RESULTING PRODUCTS:
PROCESSING DIAGRAM:
DISTINCTIVE FEATURES:
DESIGN FEATURES:
 | BED The box-shaped bed, made of thick-walled metal, has increased rigidity and vibration resistance, and has undergone special heat treatment. This ensures drilling accuracy and long service life of the machine without loss of precision parameters. |
 | MAIN WORK TABLE Designed for positioning the glass being processed in the drilling zone against precisely set stops to size. The table surface is faced with rubber material, which creates the best contact between the glass and the table's working surface during processing. |
 | ADDITIONAL WORK TABLE A welded structure made of metal profile with rubber rollers mounted on it. The rollers allow large workpieces to be moved across the table without effort. Designed for placing and positioning large parts against the stops. |
 | LIFTING OF THE ADDITIONAL WORK TABLE Needed to allow large glass sheets to move freely on the rollers relative to the main rubberized table. This is provided by four pneumatic cylinders installed at the corners of the table. |
 | UPPER GLASS CLAMP Ensures secure fixation of the workpiece during processing. Eliminates vibration and displacement of the part being processed. Activated from the main button panel. |
 | LOWER DRILL PROTECTION The lower spindle is equipped with a retractable protective system that prevents large-diameter glass chips from getting onto the tool. |
 | CHANGING THE ROTATION SPEED OF THE DRILLING SPINDLES Achieved by changing the gear ratio between the motor pulley and the spindle pulley by repositioning the V-belt. Necessary for high-quality processing depending on the glass thickness and hole diameter. |
 | DRIVE ELECTRIC MOTORS Equipping the machine with electric motors from the European company ABB, compliant with CE standards, ensures the reliability and longevity of its operation. |
 | DRILLING SPINDLE MOVEMENT SYSTEM WITH HYDRAULIC DAMPER The drilling spindles are moved by pneumatic cylinders on command from a button on the control panel. The hydraulic damper reduces the drilling spindle speed as the drill approaches the glass surface. This achieves smooth entry of the drill into the glass to a specific depth, ensuring a high-quality surface of the drilled hole. |
 | ADJUSTING THE DRILLING DEPTH OF THE LOWER SPINDLE Performed manually by moving the limit switch along the screw. This ensures precise drilling depth for the hole in the lower glass surface, preventing chipping when processed by the upper spindle. |
 | CENTRALIZED LUBRICATION UNIT Allows lubrication in hard-to-reach areas of spindle unit guides, drives, etc. This ensures convenient maintenance and reduces wear on units and mechanisms |
 | COOLING SYSTEM The machine is equipped with a coolant recirculation system. The water tanks are made of stainless steel, which ensures their durability and protects the tank surface from corrosion. |
| Model | JD-22 |
| Diameter of holes processed, mm | 4 - 65 |
| Dimensions of processed glass: | |
| Max. length, mm | 2600 |
| Max. width, mm | 2400 |
| Thickness, mm | 3 - 20 |
| Main work table dimensions, mm | 800 x 800 |
| Drilling spindle rotation speed, rpm | 1400 / 2800 |
| Total installed power, kW | 4.95 |
| Overall dimensions: | |
| Length, mm | 2200 |
| Width, mm | 2500 |
| Height, mm | 1700 |
| Weight, kg | 1000 |
